GX螺旋輸送機

周先生 13906278080 丁寶勤 13906276368

電話：0513-88400999 傳真：0513-88400998 郵箱：jszk@vip.163.com

一、概述
GX型螺旋輸送機是利用螺旋轉動將物料沿機殼連續推移而進行輸送的。本機具有結構簡單，外形尺寸小，成本低，操作安全，能按工藝要求滿足多點進料和排料。
.Brief introduction
Type GX Screw Conveyor is conveyed material by screw rotation along shell. It is characterized by simple structure, small outline size, low cost and safe operation. Inlet and outlet at many points according to workmanship request.

二、技術性能與技術參數
Technical capacity and technical parameter

規格{Specification}		主要技術性能(Main technical capactity)		驅動裝置(Driving device)				重量 (Weight) (kg)
直徑 (Diameter)	長度 (Length) (m)	產量(水泥} (噸/時）Output (cement) t/h	轉速 (轉/分）Speed (r/min)	減速機(Reducer)		電動機{Motor}
直徑 (Diameter)	長度 (Length) (m)	產量(水泥} (噸/時）Output (cement) t/h	轉速 (轉/分）Speed (r/min)	型號(Type)	速比(Ratio)	型號(Type)	功率 (Power)
QX200	?10	9	60	JZQ250	23. 34	Y90S—4	1. 1	726
GX200	?20	9	60	JZQ250	23. 34	Y90L—4	1.5	1258
GX250	?10	15.6	60	JZQ250	23. 34	Y100L—4	2. 2	960
Gx250	?20	15.6	60	JZQ250	23. 34	Y100L—4	3	1750
GX300	?10	21.2	60	JZQ350	23. 34	Y100L—4	3	1373
QX300	?20	21.2	60	JZQ350	23. 34	Y112M—4	4	2346
GX400	?10	51	60	JZ0400	23. 34	Y132S—4	5. 5	1911
GX400	?20	51	60	JZQ500	23. 34	Y160M—4	11	2049
Gx500	?10	87.5	60	JZQ400	23. 34	Y132W—4	7. 5	2381
GX500	?20	87.5	60	JZQ650	23. 34	Y180W—4	18. 5	5389
Qx600	?10	134.2	45	JZQ750	23. 34	Y180L—4	22	3880
Gx600	?10	134.2	45	JZQ850	23. 34	Y250M—4	55	7090

三、GX型螺旋輸送機的制法和裝法說明

GX螺旋機按使用場合要求的不同，分為S制法和D制法兩種。

　　 S制法一帶有實體螺旋面的螺旋，其螺距等于直徑的0. 8倍。

　　 D制法一帶有帶式螺旋面的螺旋，其螺距等于直徑。

　　GX螺旋機按驅動裝置裝配方法的不同，分為右裝和左裝兩種：

　　右裝一站在電動機尾部向前看，減速器低速軸在電動機的右側。

　　左裝一站在電動機尾部向前看，減速器低速軸在電動機的左側。

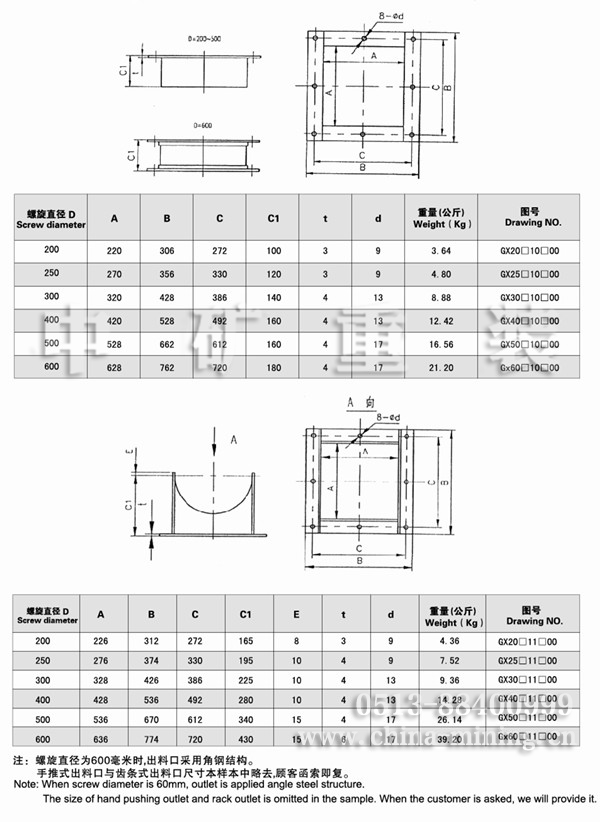

　　GX螺旋機的出料口有方形出料口、手推式出料口和齒條式出料口三種。后兩種出料口拉板的開閉方向，隨安裝不同而分右裝、左裝兩種：

　　右裝一站在螺旋機頭節往尾節看，拉板向右拉開。

左裝一站在螺旋機頭節往尾節看，拉板向左拉開。

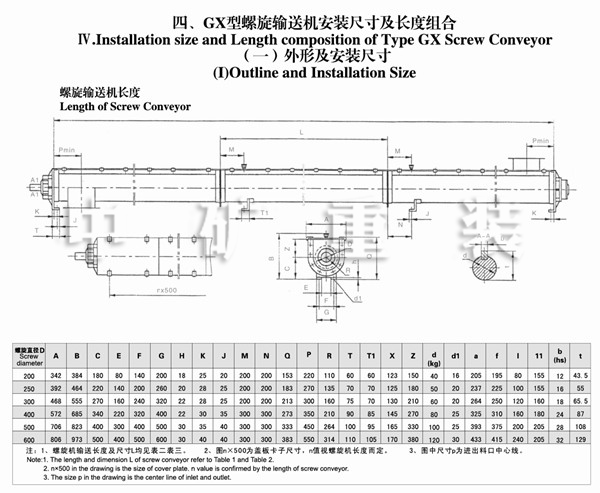

Fabrication and installation of type GX Screw Conveyor
Type GX Screw Conveyor has S and D types according to applied condition.
Type S~with screw of hypostatic screw surface, the pitch is equal to 0.8 times of diameter.
Type D~With screw of screw surface, the pitch is equal to diameter.
Type GX screw conveyor has right and left assemble way according to different assembling way.
Right assemble-Stand in the tail of motor and look forward, low speed shaft of reducer is on the right of motor.
Left assemble-Stand in the tail of motor and look forward, low speed shaft of reducer is on the left of motor. Outlet mouth of type GX screw conveyor has square outlet, hand drawing outlet and gear outlet. The direc-tion of rear two outlet plates has right and left assembling.
Right assemble—Stand on head part of screw conveyor and look tail part, drawing plate is to the right.
Left assemble—Stand on tail part of screw conveyor, drawing plate is to the left.
