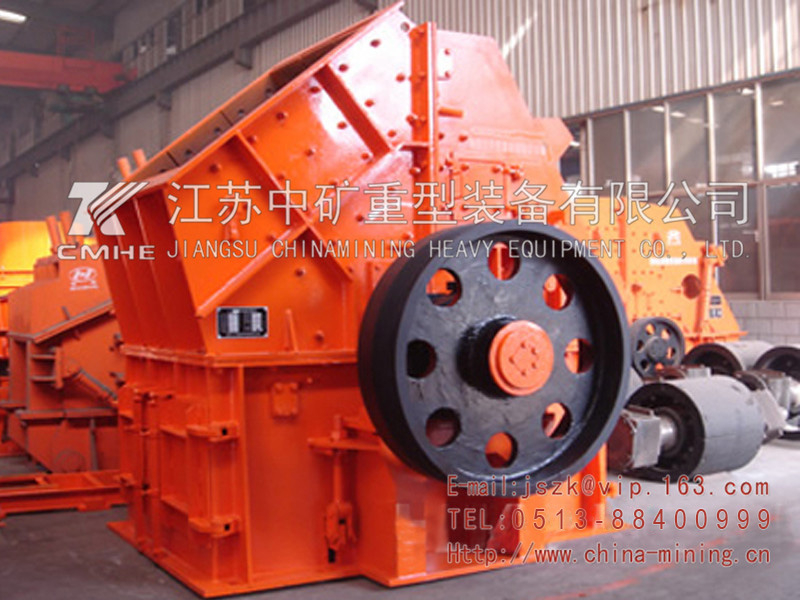

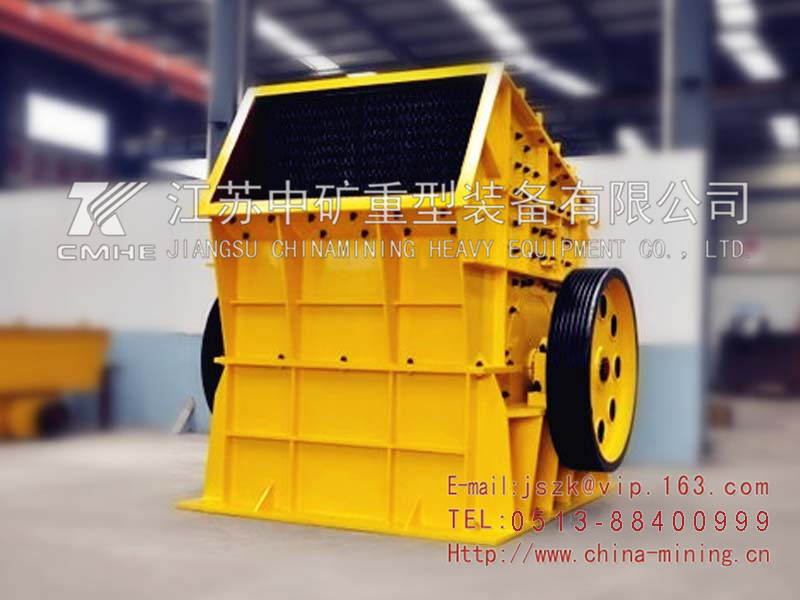

PCD反擊型錘式破碎機

本系列產品進料粒度大，采用結構、無鍵聯接、高鉻板錘、DuTe的反擊襯板，也可以調節排料粒度大小。該產品可以直接將粒度為600-1800mm的物料破碎至25或20mm以下。主要用于水泥、建材、礦山、化工等工業部門破碎脆性，中硬、含水性不大的物料，如石灰石等。物料的抗壓強度不超過140MPa。

This series of product is a new product after the optimized design of he company. It has a large feeding particle size.lt adopts unique structure, keyless connection,high chrome hammer.and unique impact liner.The particle size can be adjusted.The product can directly crush materials with a maximum particle size of 600-1800mm into the size less than 25 to 20mm.lt is mainly used for crushing brittle and medium-hard materials such as limestone with a low moisture content in the industries of cement, mining.chemical industry,etc.The compressive strength of materials shall not exceed 140Mpa.

產品特點Product features

■破碎比大

Large crushing ratio

■產品形狀呈立方體

Cubic shape

■進料粒度大

Large feeding size

■排料粒度大小可調，簡化破碎流程

Discharging particle size is adjustable,the crushing process is simplified

■錘頭壽命長，綜合運行成本降低

Hammerhead has a long life,and the comprehensive operating costs are reduced

■高效節能Energy-efficient

技術參數表I Technical Date

型號	轉子直徑×轉子寬度	進料邊長上限	出料粒度	生產能力(t/h)	功率	重量
PCD1609	1680×918	600	25-75	50-70	132	23900
PCD1612II	1680×1250	850	25-75	100-140	220	29000
PCD2014	2000×1480	1200	25-75	150-250	355	49800
PCD2519	2530×1900	1500	25-75	250-450	710	94200
PCD2425	2740×2550	1500	25-75	700-800	1400	129900
PCD2428	2740× 2720	1850	25-75	800-900	1400	140000
